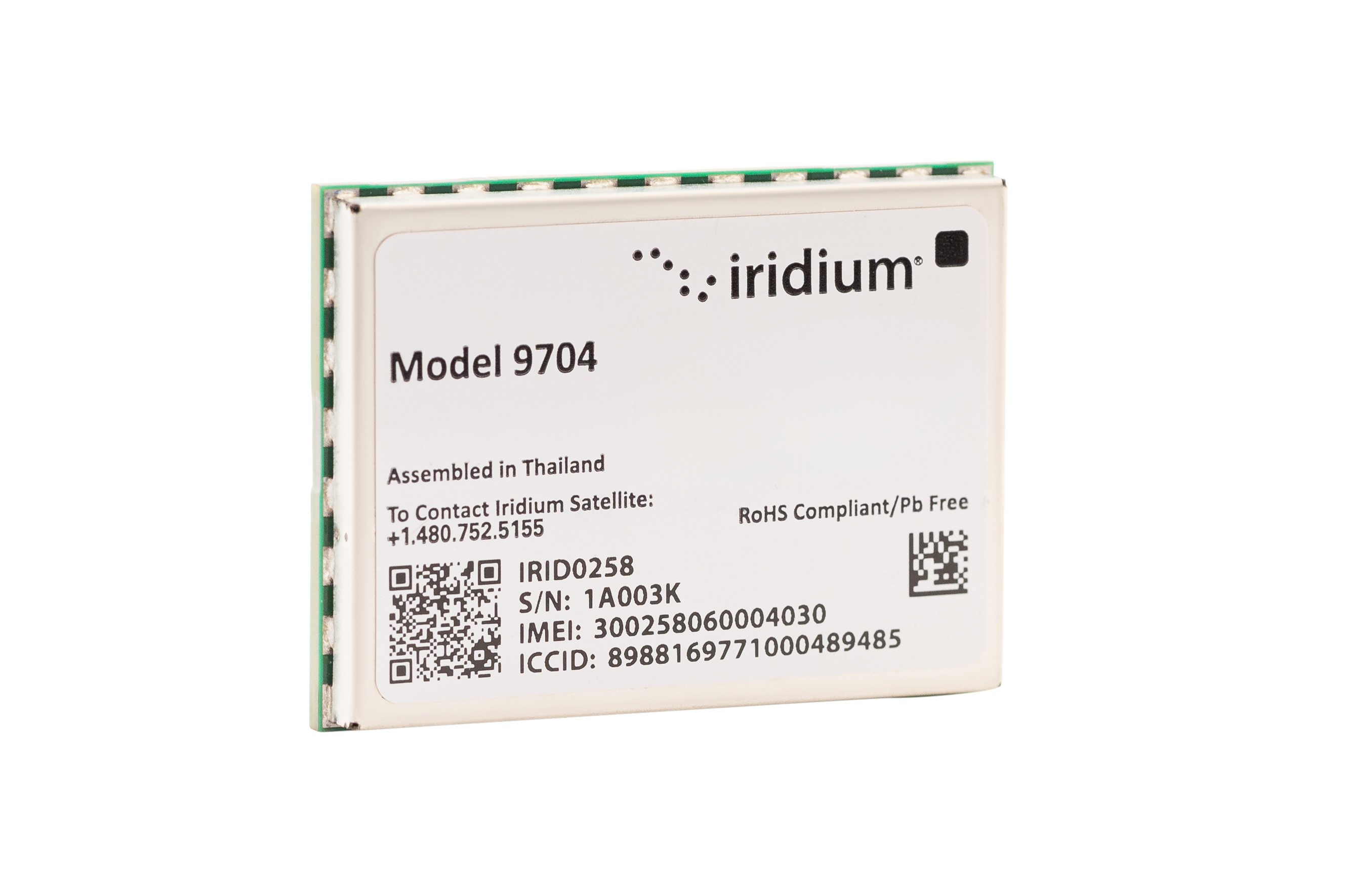

Iridium Certus 9704 Module
Manufacturer : Iridium
Model : 9704
Services: Iridium Messaging Transport
-
Dedicated hardware for Iridium Messaging Transport® (IMT®)
-
Ideal for hard-to-reach remote deployments
-
Surface-mounted: no cables or added parts
Iridium Certus 9704 Module
Manufacturer : Iridium
Model : 9704
Services: Iridium Messaging Transport
-
Dedicated hardware for Iridium Messaging Transport® (IMT®)
-
Ideal for hard-to-reach remote deployments
-
Surface-mounted: no cables or added parts
The Future Is Now
Built into an ultra-slim module, Iridium Certus™ 9704 integrates with products of any scale to deliver cloud-ready data over Iridium’s truly global satellite network. Iridium Certus 9704 exclusively supports IMT, a cloud-native, server-device messaging format that optimizes Iridium network capabilities to match increasing demand in industrial IoT.

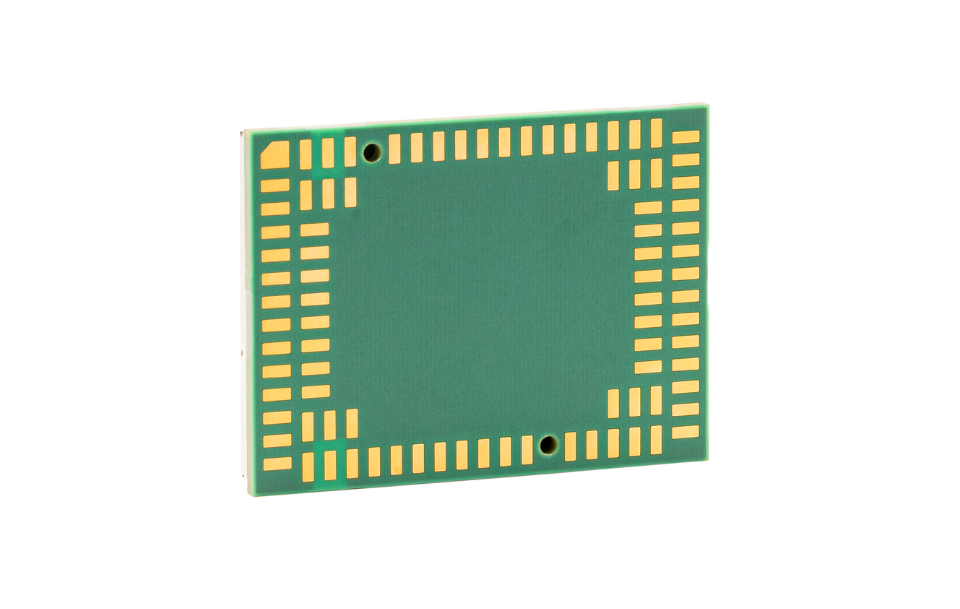

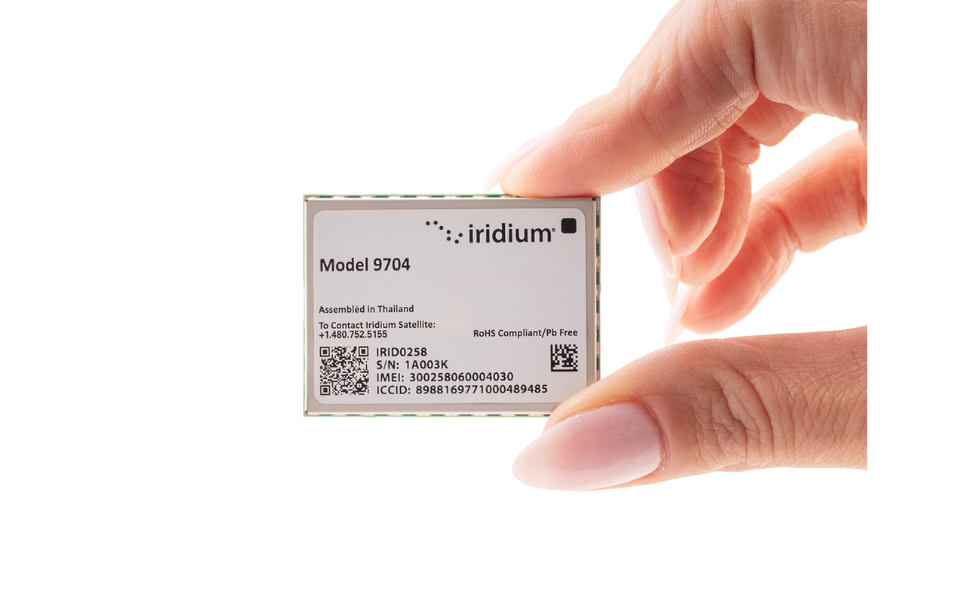

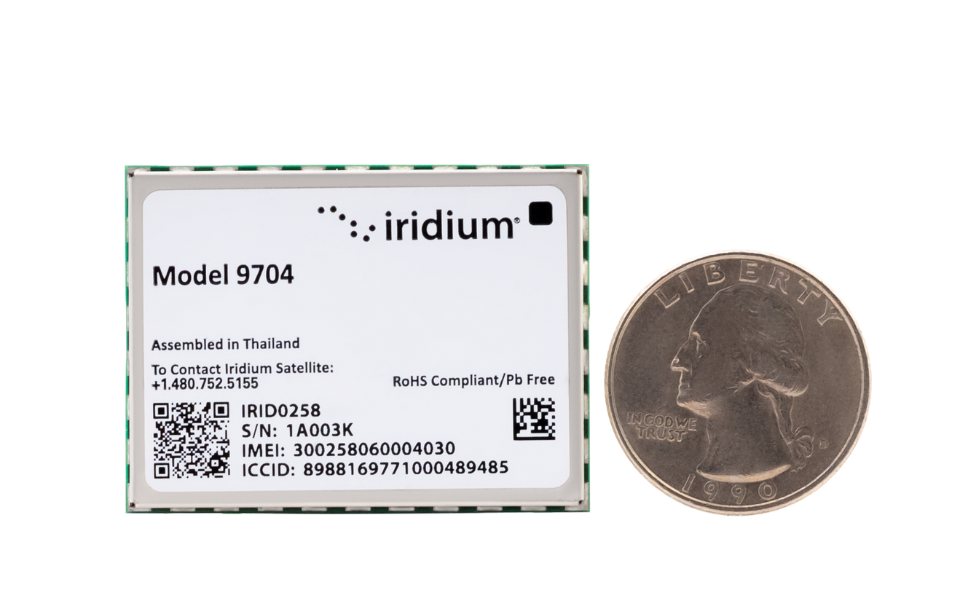

Iridium Certus 9704 harnesses the power of truly global satellite coverage in a sleek form factor without cables or added parts—just a single component soldered directly onto the Printed Circuit Board (PCB). A durable surface mount coupled with minimal profile height allows developers to build compact, rugged, and versatile devices.
Features
- Lifespan
-
Made to deliver 10+ years of service
- Universal, Cloud-Ready Data
-
Messages up to 100 KB through cost-effective IMT service
- Energy Efficient
-
Low power specs for active and idle modes
Product Specifications and Certifications
| General | |
|---|---|
| Command Interface | JSON-Based Serial Protocol for REST (JSPR) |
| Interfaces | Serial data; SPI; GPIOs; GNSS pass-through; antenna (RF pin); digital interface |
| Dimensions | 31.5 mm x 42.0 mm x 3.8 mm (L x W x H) |
| Weight | 12g |
| Operating Temperature Range | -40°C to +85°C |
| Max Message Size | 100 KB—including images & soundbites |
Expected Certifications:
- FCC
- EU/UK (CE)
- Canada (ISED)
NOTE: Certifications expected when shipments begin.
