Handheld Global Tracker
The GSatMicro Series provides the intelligence and connectivity required to enable any satellite-enabled project.

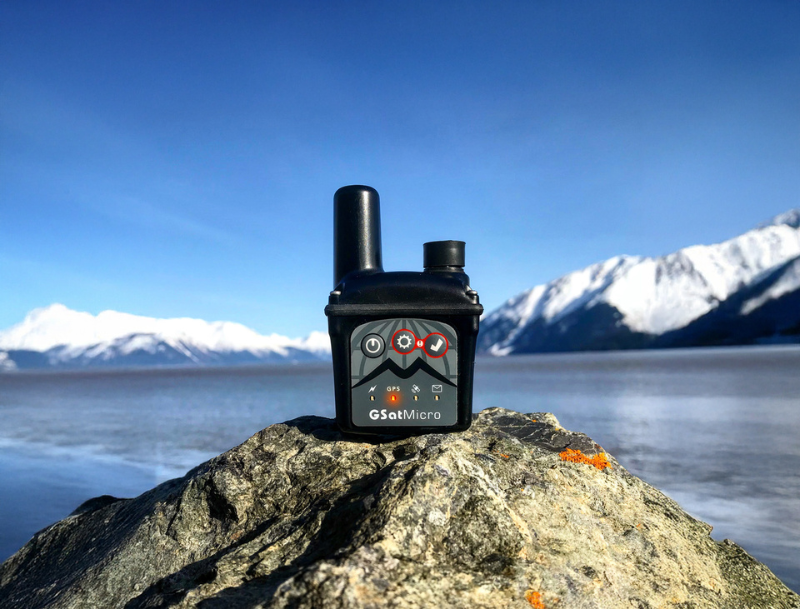

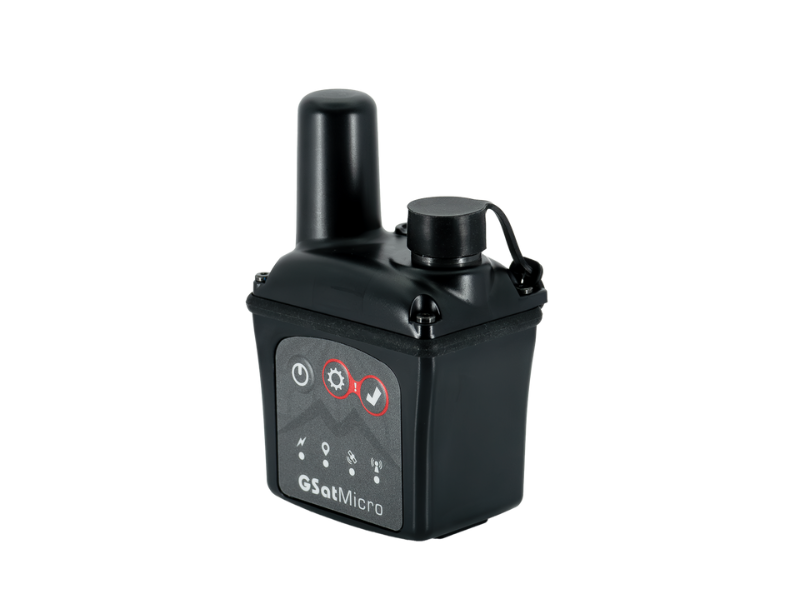

Part of the GSatMicro Series, the GSatMicro is the smallest self-contained Iridium tracker in the world. It combines the powerful OEM with a small, rugged handheld form factor that can be mounted or carried anywhere. With IP67 environmental ratings and pole-to-pole Iridium network connectivity, the GSatMicro is ready for deployment and reliable use in harsh environments worldwide. GSE’s public and private sector clients have trusted GSatMicro to provide lone worker support and telematics intelligence since the product was introduced in 2014.
Features
- Compact Size
-
The GSatMicro sports a handheld form factor and is small enough to be mounted or carried anywhere.
- Fully Programmable
-
Each GSatMicro can be customized for complex data and behavior applications by leveraging LUA scripting commands.
- Multiple Interfaces
-
Buttons, BLE, Sensors, and Ports—each GSatMicro can support multiple interfaces.
- Weatherproof
-
With an IP67 rating and a temperature range of -25C to 40C, GSatMicro units can be deployed in harsh environments.
- Military Encryption
-
The data security of the GSatMicro satisfies US Department of Defense requirements.
- Over-The-Air Configuration
-
Manage the GSatMicro, change settings, & run diagnostics from anywhere on any device.
- Companion Applications
-
GSatMicro companion apps include a desktop powershell and iOS & Android mobile apps.
- Monitor Asset Behavior
-
The onboard accelerometer and magnetic compass allow for behavioral data & location tracking.
- High-Sensitivity GPS
-
Full control of sensitivity settings is possible, and triangulated GPS sets a high ceiling for positional accuracy.
Product Specifications and Certifications
| GSatMicro Handheld Tracker | Sensitivity | Position Accuracy | Time To First Fix | |
|---|---|---|---|---|
| Mechanical | ||||
| Iridium Embedded Technology | Iridium 9602 Module | - | - | - |
| General | ||||
| USB DC Input | 4.5V to 5.5V | - | - | - |
| High Voltage DC Input | 7.5V to 36V (protected to 40V DC) | - | - | - |
| 2 Analog Inputs | 0V to 30V DC | - | - | - |
| Communication | UART - NMEA (Default) | - | - | - |
| Frequency | LI - 1,575 MHz | - | - | - |
| NMEA message Switchable | GGA, RMC, GSA, GSV, VTG, GLL, ZDA | - | - | - |
| Channels | 48 | - | - | - |
| Correlators | 400,000 | - | - | - |
| Tracking | - | - 163 dBm | - | - |
| Navigation | - | - 160 dBm | - | - |
| Acquisition | - | (cold start) - 148 dBm | - | - |
| Autonomous | - | - | < 2.5 m CEP | - |
| Horizantal | - | - | < 2.0 m CEP SBAS | - |
| Hot Start | - | - | - | < 1s |
| Warm Start | - | - | - | < 32 s |
| Cold Start | - | - | - | < 35 s |
