IP Data Platform For Any Aviation Asset
Guardian Mobility, a leading enterprise solutions provider to over 100 clients worldwide, is a certified service provider of Iridium Certus aviation products and solutions. Guardian can offer full end-to-end solutions or provide just airtime or products to partners in specialty markets.

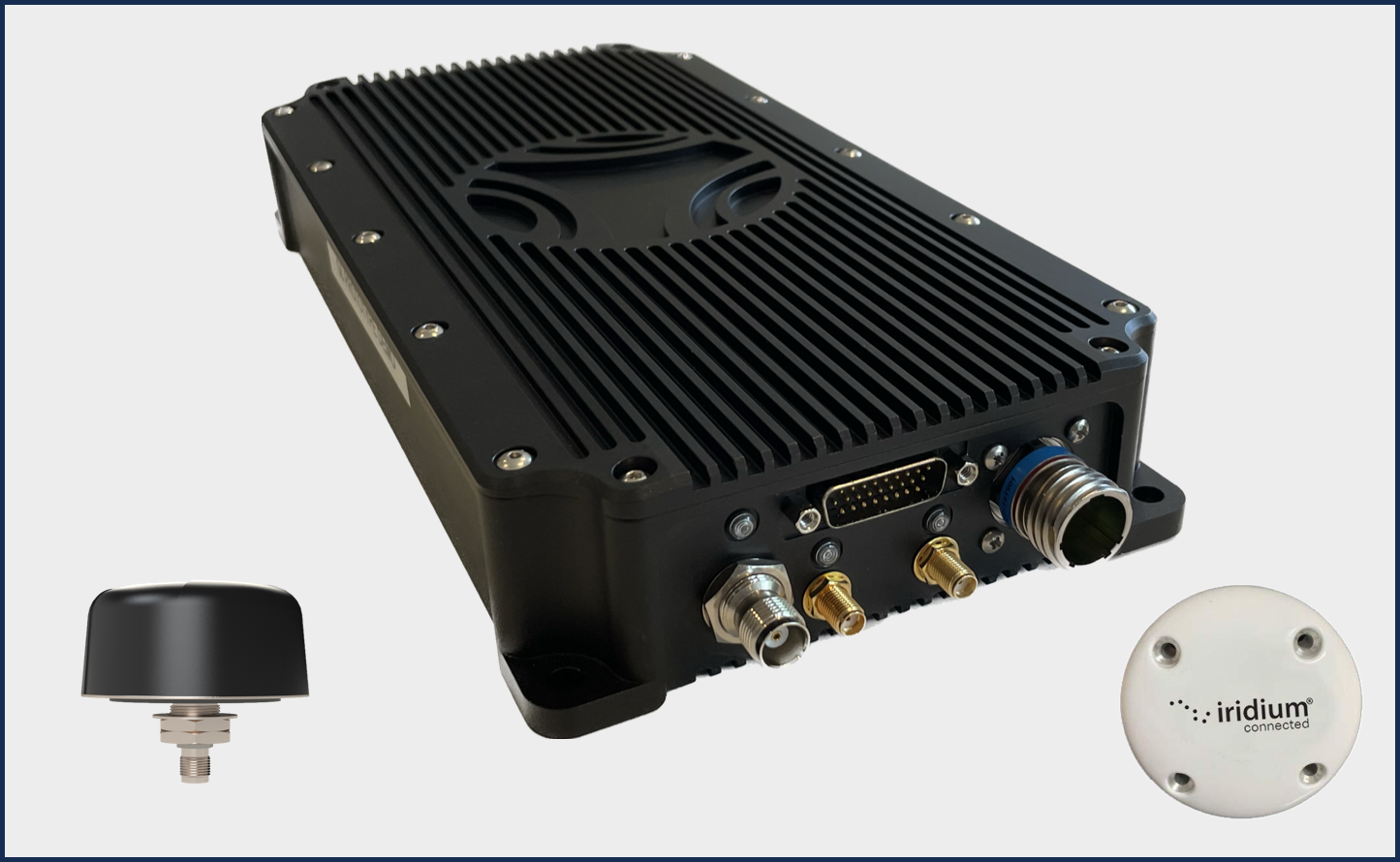

The G6-S terminal provides a bi-directional midband 88 Kbps modem for use with the Iridium® satellite network. It uses IP data protocol and multiple interfaces, such as Wi-Fi and Bluetooth® to ensure simple application integration and provides data and voice services. Features such as VOIP, PTT, compressed live video and imagery provide cost effective solutions not seen before in the aviation markets. Partners can develop scripting/applications within the device to customize the product features and capability for their enterprise services. STCs and MilSpec design have made it the ideal solution for military, law and order and EMS applications that require critical data communication redundancy.

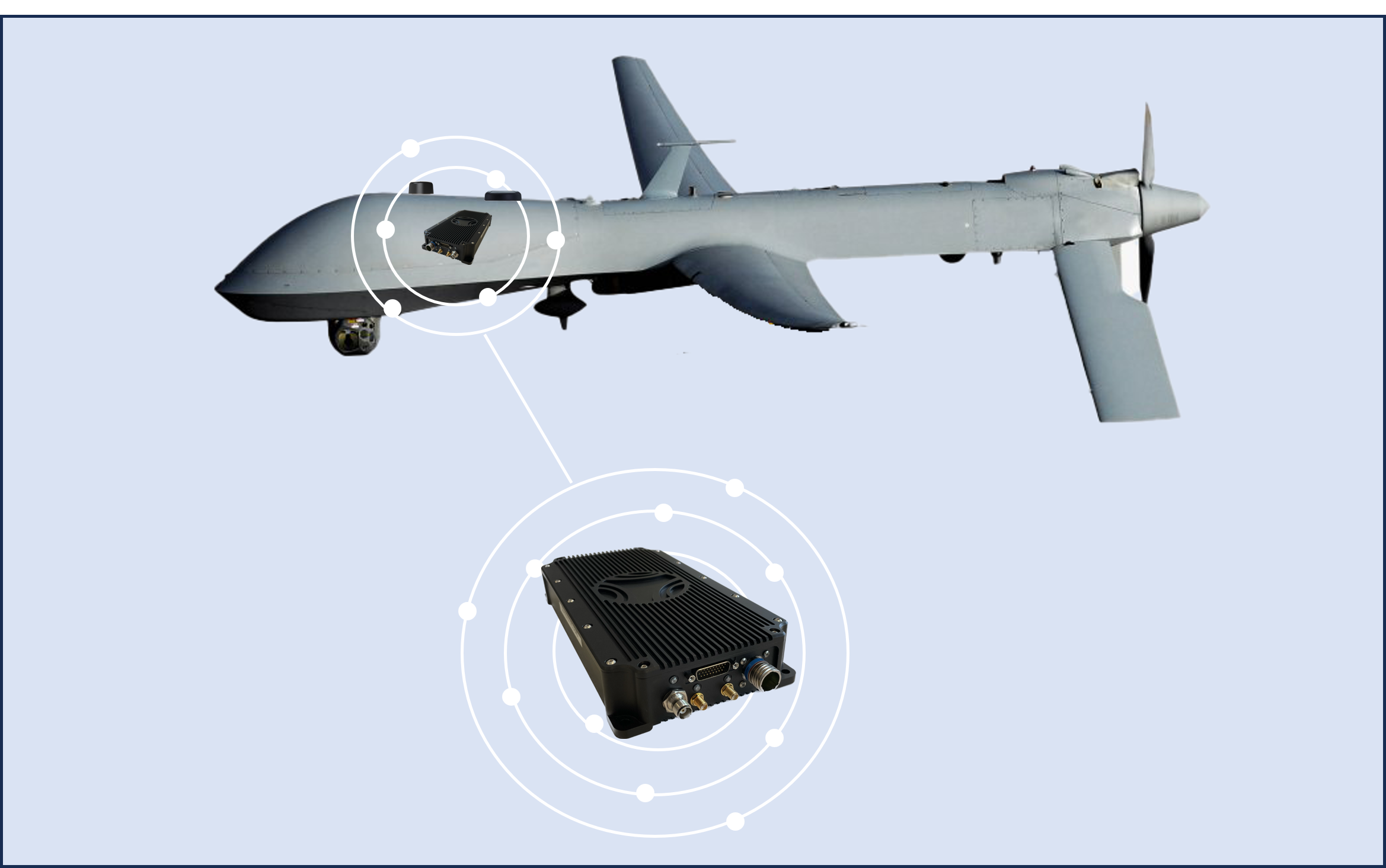

The G6-S provides an IP data platform for any aviation asset and guarantees connectivity anywhere in the world.
Features

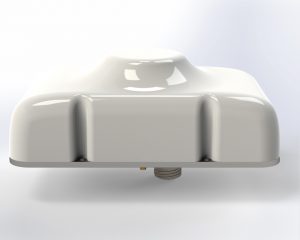

- Terminal Extendable Antenna
-
CST Iridium Certus 100 modem with extended GPS and Iridium antenna
- 88 Kbps IP Satellite Terminal
-
This is a bi-directional 88 Kbps terminal and 95% BW efficiency
- Power Backup
-
A high-capacity capacitor provides limited but critical power backup to ensure power down message is sent
- Voice, PTT, VoIP, Video, & Imagery
-
Two HD voice channels are included and Guardian is developing PTT, VoIP, video, and imagery services
- Encryption
-
AES192 commercial encryption is standard with the option of AES256 after first release
- Third-Party Scripting Available
-
Third parties can apply their own scripts to the terminal for customization
Product Specifications and Certifications
Mechanical | |
---|---|
Iridium Embedded Technology | Iridium Certus 9770 Module |
General | |
Dimensions (L x W x H) | 280mm x 146mm x 47mm |
Power Supply | 12-32 VDC |
Maximal Current | 3000 mA |
Weight | 1800g (4lbs) |
Operating Temperature Range | -40 to +71 °C |
Storage Temperature Range | -40 to +85 °C |
Storage Humidity Range | 95 @ +55C %RH |
Durability Standard | RTCA/DO-160G/MIL-ST-704F |
Ingress Protection | IP54 |
Vibration Standard | Category S & U2 |
Antenna Design | Built-in Iridium Certus & GPS |
Input Voltage Range | 9-32 DVC |
Telephony | Satellite voice, PTT, & VoIP |
Streaming Data | 56Kbps |
Location Based Services | GNSS |
Data Speed Uplink (UL) | 88Kbps |
Data Speed Downlink (DL) | 88Kbps |
- Iridium Certification
