Ontoto Astro
-
Remote Telemetry Data Logging
-
Free Web Portal Provides Data to your Desktop
-
Lifetime Flash Memory
-
Ultra Low Power with Battery Life of 5+ Years
-
Over the Air Upgrades
Ontoto Astro
Manufacturer : Ontoto Pty Ltd
Model : Astro Groundwater Datalogger
-
Remote Telemetry Data Logging
-
Free Web Portal Provides Data to your Desktop
-
Lifetime Flash Memory
-
Ultra Low Power with Battery Life of 5+ Years
-
Over the Air Upgrades

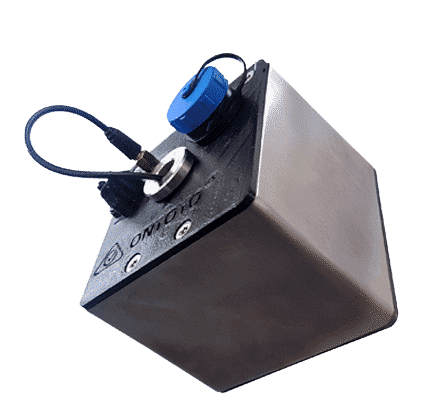

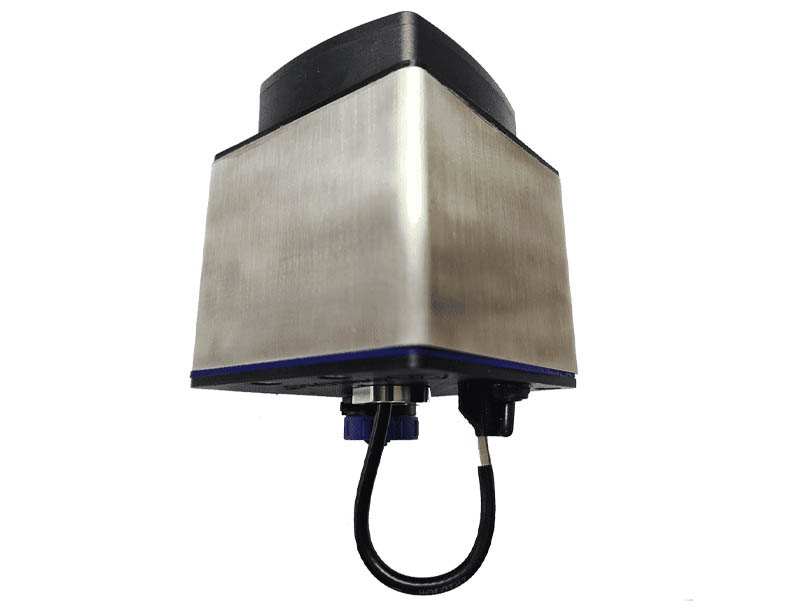

The Ontoto Astro
Your Data, Anywhere.

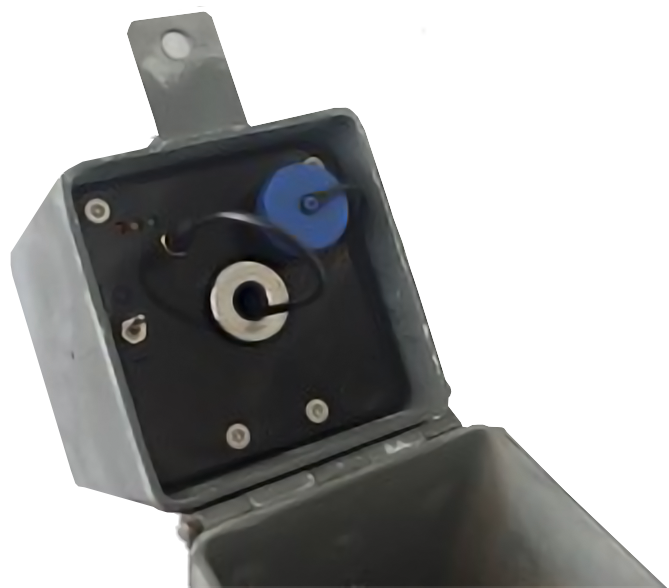

When you need access to accurate, affordable data to monitor our threatened global areas in remote areas without usual telecommunication access, you need the Ontoto Astro, the groundwater data logger that talks to the stars. Using this data logger, you will be able to monitor and manage your monitoring bore remotely. With simplicity in mind there is only one toggle switch, one SMA aerial connection and one sensor connector visible on the external casing.
Features
- Ultra Low Powered
-
Lithium battery powered device, up to 5 years between battery changes (sleeping current draw of only 2μA)
- Bluetooth Connectivity
-
Bluetooth connectivity for device configuration via the Ontoto Connect iOS/Android app
- Optimised Data
-
Optimized data usage with custom packet format to significantly reduce transmission costs
- Real-time Customer Support
-
Real-time customer support and debugging via the Ontoto Connect mobile app
- Ontoto Connect App
-
The app allows management of the data logger to be undertaken wirelessly via low-energy Bluetooth, including datalogger configuration; firmware update; sensor test and much more
- Ontoto Web Portal
-
A free and fully integrated cloud platform to access data; data transfer; datalogger status; configure device and much more
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 90mm x 90mm |
| Dimensions ( H x Ø ) | 95mm |
| Weight | 870 g |
| Iridium Embedded Technology | Iridium 9603 Module |
| Environmental | |
| Operating Temperature Range | -20 to 80 ℃ |
| Battery | |
| Capacity | 6000 mAh |
| Battery Type | Lithium |
| Power | |
| Input Voltage Range | 3.6 V |
