Vortex Satellite Data Unit
Services: Iridium Short Burst Data® (SBD®)
-
High performance 7″ touch panel
-
Next-gen connectivity: WiFi 7, 5G, & satellite integration
-
Flexible I/O orientation
-
Rugged design with robust waterproof connectors
-
Smart power management with wide power input
Vortex Satellite Data Unit
Manufacturer : Ubiqconn Technology (USA) Inc.
Model : VX-311
Services: Iridium Short Burst Data® (SBD®)
-
High performance 7″ touch panel
-
Next-gen connectivity: WiFi 7, 5G, & satellite integration
-
Flexible I/O orientation
-
Rugged design with robust waterproof connectors
-
Smart power management with wide power input
AI-Enhanced, SATCOM-Ready Vehicle Mount Computer for Extreme Environments

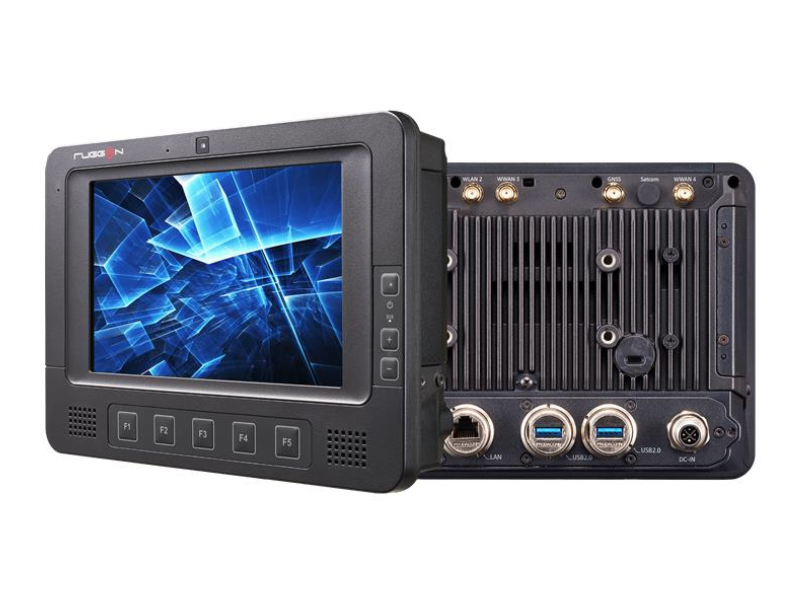

The RuggON Vortex is a rugged vehicle mount computer designed for demanding industrial applications. Featuring a bright 7-inch PCT touch display with intuitive interface, this robust solution is powered by Intel® Raptor Lake Core Processor for exceptional processing power.
Vortex supports satellite communication for reliable connectivity in areas without conventional networks, offering SOS and text data capabilities through Iridium® services. The system’s diverse wireless connectivity options include satellite, 5G, and WiFi 7—ensuring uninterrupted operation across all terrains.
Built to withstand extreme conditions, Vortex is certified to IP65, MIL-STD-810H, and IEC-60721-3-5 5M3 standards with rugged waterproof connectors. Its fanless design endures harsh vibrations and shocks typically encountered in off-road industries including logistics, ports, agriculture, and mining.
The system features AI-driven capabilities for real-time data processing, smart surveillance, and driver safety features. With flexible I/O orientation and a unique quick-release mounting system, Vortex simplifies installation and maintenance, reducing downtime for mission-critical operations.
Features
- Powerful Intel Raptor Lake Processor
-
High-performance computing for industrial applications, delivering exceptional processing power for AI functions, data analysis, & multitasking in demanding environments.
- Iridium Satellite Communication
-
Iridium satellite connectivity provides reliable communication when conventional networks are unavailable, offering SOS & text capabilities for uninterrupted operations anywhere.
- Military-Grade Rugged Design
-
P65, MIL-STD-810H and IEC certified with waterproof connectors and fanless design to withstand extreme temperatures, vibrations, shocks, & harsh industrial environments.
- 7-inch PCT Touch Display
-
Bright, intuitive interface operable with gloves in various lighting conditions, enhancing operator efficiency & reducing training time for vehicle-mounted applications.
- Multi-Network Connectivity
-
Compatible with satellite, 5G, & WiFi 7 networks to ensure reliable communications across all terrains & operational scenarios, providing flexibility for diverse requirements.
- Advanced AI Capabilities
-
Enables integration with AI technologies for driver monitoring, blind spot detection, & predictive analytics, boosting safety & operational efficiency for vehicle operators in challenging environments.
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Iridium Embedded Technology | Iridium 9603 Module |
| General | |
| Processor | Intel Raptor Lake Core i5-1335UE up to 4.5GHz, Optional Intel Atom x7211E up to 3.2GHz |
| Memory & Storage | DDR5 SDRAM up to 16GB, M.2 2242 SSD up to 256GB |

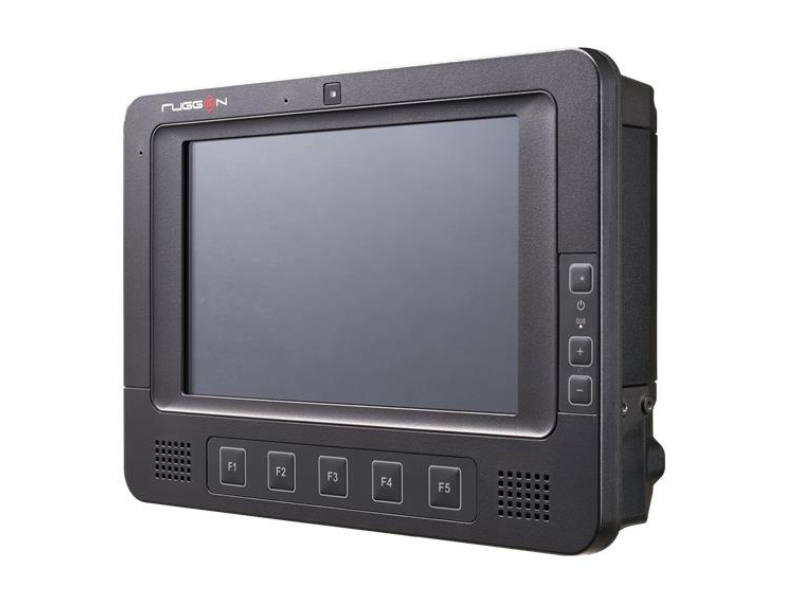

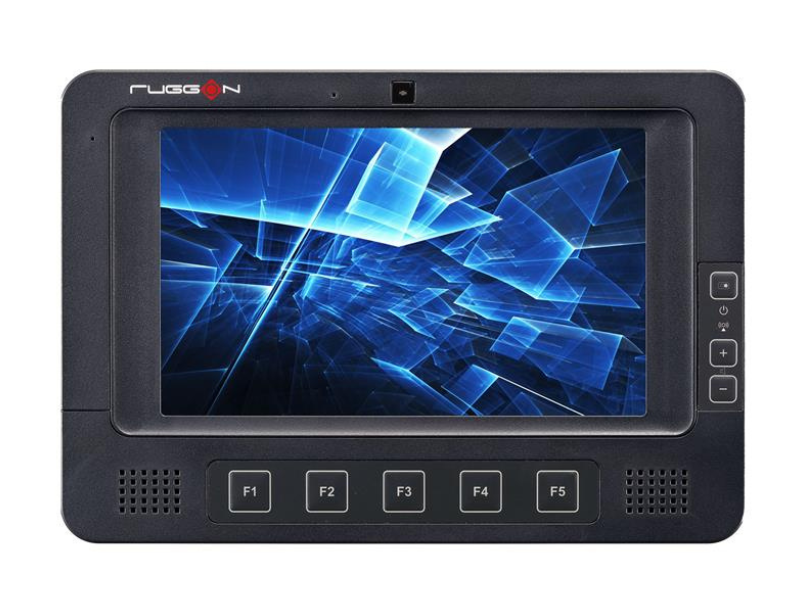

| Display | 7" TFT LCD WSVGA (1024 x 600), 500 nits brightness, Capacitive multi touch (PCT) |
| Communication | Wi-Fi 7 (IEEE 802.11be), Bluetooth V5.4, Iridium Satellite Communication (SBD) |
| Rugged Certification | IP65, MIL-STD-810H, IEC-60721-3-5 class 5M3 certified |
| Operating Temperature | -30°C to 60°C (Atom), -30°C to 55°C (Core i5) |
| Power Management | 9-60 VDC input, Vehicle power protection (ISO7637-2) |

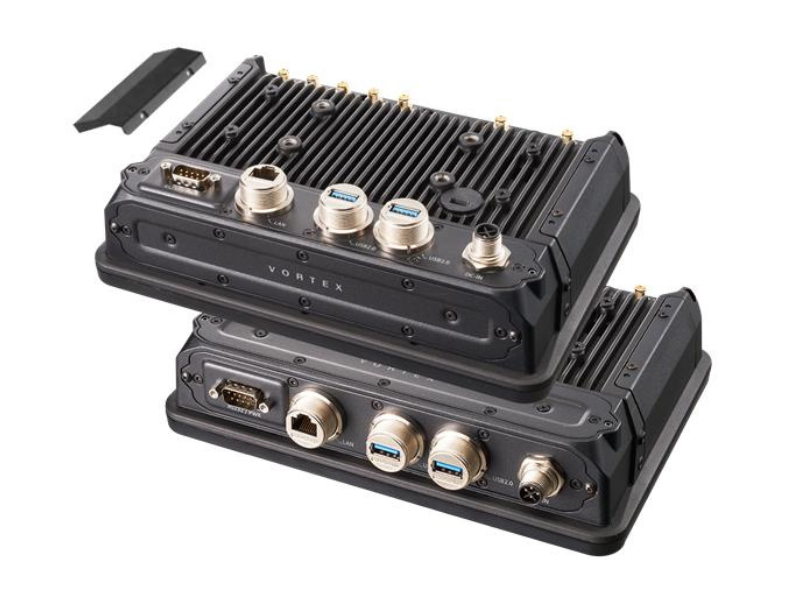

| I/O Options | Multiple configurations available with RS-232, Gigabit Ethernet, USB, CAN bus, HDMI |
| Iridium Integration | Iridium 9603 Module for SBD communication |
| Dimensions | 220 x 152 x 53 mm |
| Weight | 1.67kg |
- Iridium® certification
- FCC
- CE
- IP65
- MIL-STD-810H
